Monitoring Navigation

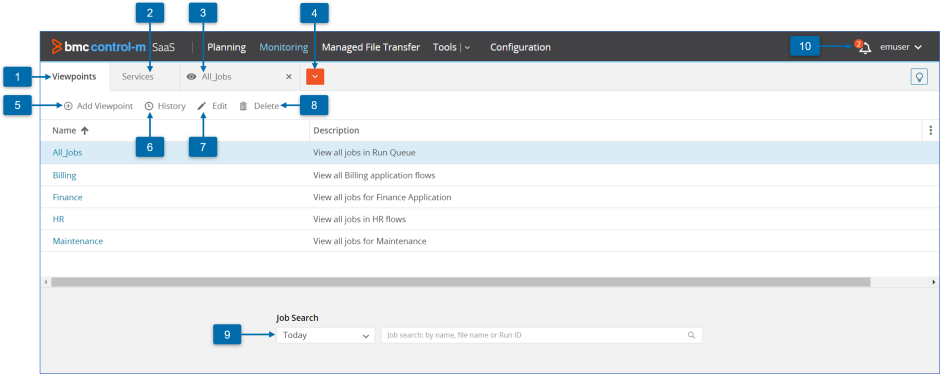

The following image shows the Monitoring domain interface:

The following table describes the functionality of the tabs in the Monitoring domain interface:

Key

Name

Description

1

Viewpoints tab

Lists all the Viewpoints.

2

Services tab

Shows all the Services active on the current day or active on the day that you select, as described in Services Navigation.

3

All_Jobs tab

Shows an open Viewpoint, as described in Viewpoint Navigation.

4

Enables you to:

5

Add Viewpoint

Enables you to add a Viewpoint, as described in Creating a Viewpoint.

6

History

Enables you to create an historical viewpoint, as described in Creating a Historical Viewpoint.

7

Edit

Enables you to edit a Viewpoint.

8

Delete

Enables you to delete a Viewpoint.

9

Job Search

Enables you to search for jobs within the current day or the History, by job name, file name or Run ID.

10

Alerts

Shows the number of current alerts. The Alerts page enables you to manage and monitor Alerts.

Viewpoint Navigation

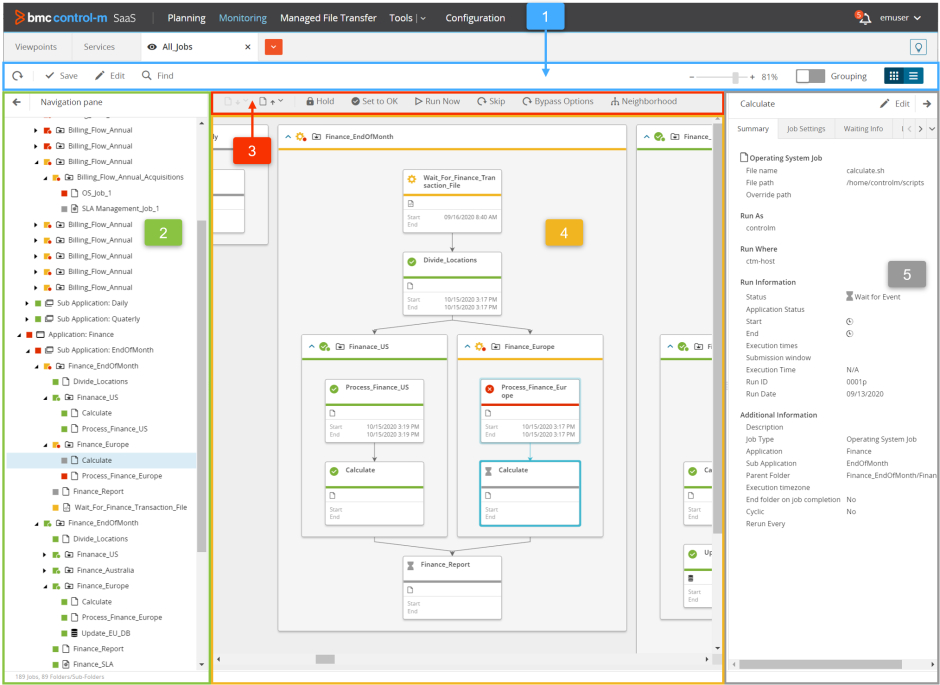

The following image shows the different panes in a Viewpoint interface:

Viewpoint Center Pane Toolbar

The following table describes the functionality in a Viewpoint center pane toolbar (3):

Button

Description

Shows the successors to the selected folder, sub-folder, or job, as described in Finding Neighborhood Jobs.

Shows the predecessors to the selected folder, sub-folder, or job, as described in Finding Neighborhood Jobs.

Prevents the Job from executing, as described in Holding a Job.

Sets the job to end OK, as described in Setting a Job to OK.

Runs the job immediately, as described in Executing a Job Now.

Skip over a Job within the job flow, as described in Skipping a Job.

Opens the Bypass Options pane, so that you can bypass or ignore job options when submitting a job, as described in Bypassing Options in a Job.

Finds the jobs that are in the neighborhood of the selected job, as described in Finding Neighborhood Jobs.

Services Navigation

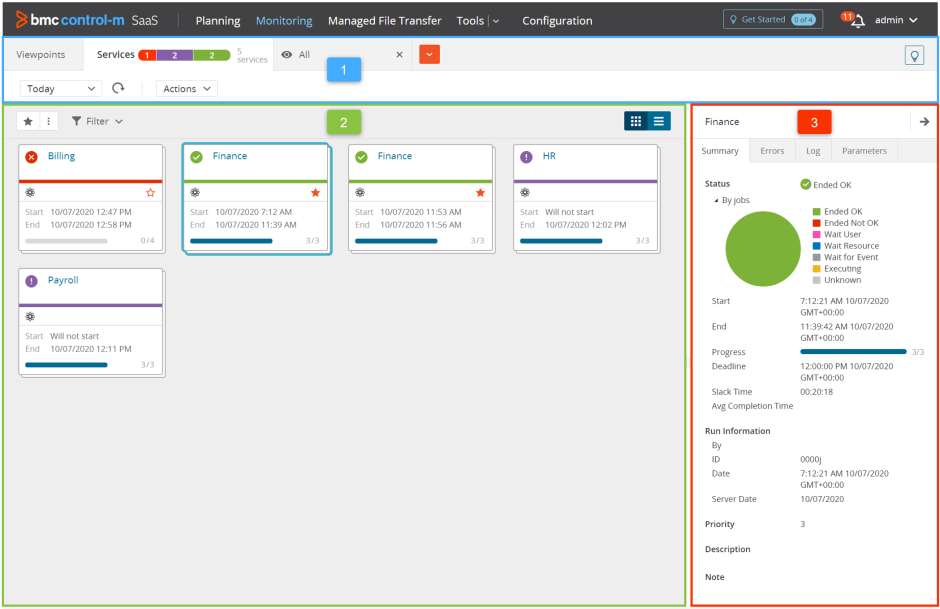

The following image shows the Services interface, which highlights all the Services active on the current day or active on the day that you select:

The following table describes the different panes in the Services interface:

Key

Description

1

The Services toolbar enables you to perform the following actions:

  • Services tab: Enables you to view the number of services per status, as shown in the right pane.

  • Time-frame: Enables you to select the day of the Services to view, either the current day or a previous day.

  • Refresh: Enables you to refresh the services for the current day.

  • Actions: Enables you to perform the following actions:

2

Services Center Pane

3

In the right pane you can view the following:

  • Summary: View the summary details such as, start and end time, progress, number of Jobs in the service, number of Jobs completed, Run ID, and description of the selected service, as described in Service Summary Tab.

  • Errors: View any error messages of the selected service.

  • Parameters: View the defined parameters and values of the selected service.

  • Log: View the activity log of the selected service, as described in Service Log Tab.

Services Center Pane

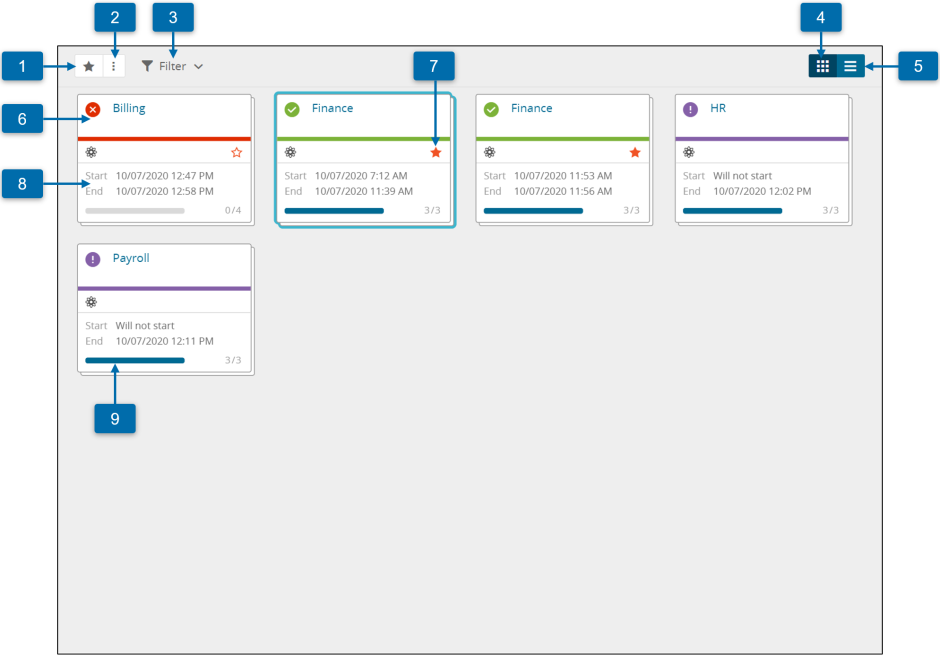

The following image shows the icons in the Services center pane:

The following table describes the functionality of the icons in the Services center pane:

Key

Name

Description

1

Favorites

Enables you to view only the services that you have selected as your favorites.

2

Favorites - Rules

Enables you to open the Favorites - Rules pane, where you can create a favorite based on the name of a service, or use * as a wild card, such as *EndofName.

3

Filter

Enables you to filter by status, as seen in the right pane.

4

Tile view

Enables you to view the job in aTile view.

5

List view

Enables you to view the job in a List view.

6

Service tile

Shows a service tile colored according to status, as seen in the right pane.

7

Favorite

Shows a service tile is a favorite.

8

Start and End dates

  • For completed services, start and end times

  • For ongoing services, expected start and end times

9

Jobs

Enables you to view the number of jobs in the service, completed overall.
